Observator Group

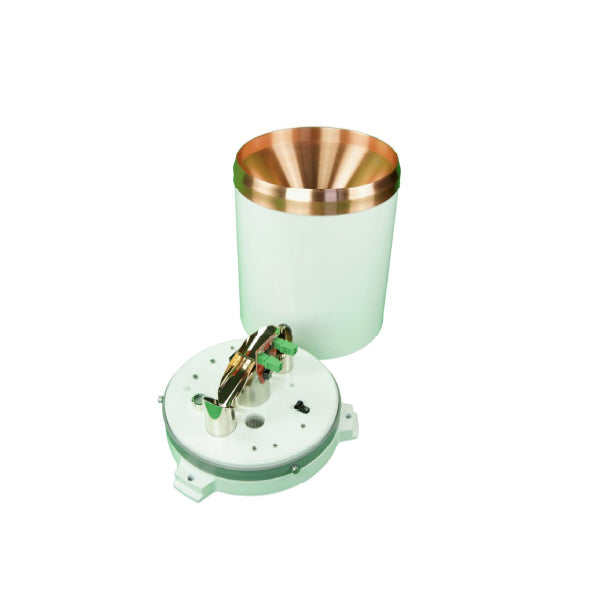

OMC-210-2 Rain Gauge

  • The successor of the popular OMC-210 Rain Gauge. The OMC-210-2 rain gauge is an instrument used to measure rainfall. It is designed and constructed for long-term operation with minimal maintenance under almost all climatic conditions.

    The OMC-210-2 may be mounted at ground level on a level slap or on an optional stand which elevates the collection rim to 1meter above ground level. This proven instrument is accurate to within 3% for rainfall rates from 25mm/hr to 200mm/hr and better than 6% up to 500mm/hr (0.2mm version).

    This rain gauge can be used for several applications, such as general meteorology, water resources studies, hydrology, flood warning systems, automatic logging systems.

    • Resolutions: 0.1, 0.2 and 0.5mm
    • Rugged and corrosion resistant construction
    • Low friction, non-seizing bucket bearings
    • Gold plated bucket for minimal retention
    • Dual reed switch output (single on 0.1mm)
    • Stable calibration
    • Built-in bubble level
    • Optional self-powered internal counter
    • Optional heating option OMC-212-2
    • Optional integrated data logger
  •  Data Sheet – OMC-210-2 Rain Gauge
