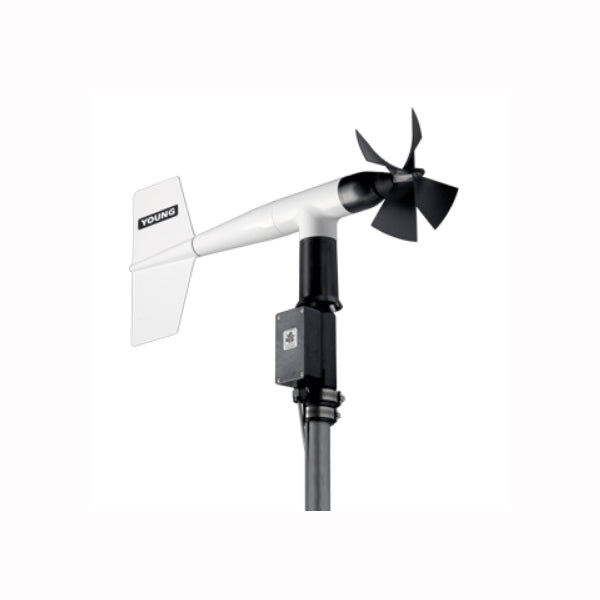

The Young Wind Monitor is a high performance wind sensor. Its simplicity combined with a rugged, corrosion-resistant construction makes it ideal for a wide range of wind measuring applications.
The wind speed sensor is a four blade helicoid propeller. Propeller rotation produces an AC sine wave voltage signal. The wind direction sensor is a rugged yet lightweight vane. Vane angle is sensed by a precision potentiometer. Constructed of UV stabilized plastic with stainless steel and anodized aluminium fittings, the sensor mounts on standard 1 inch pipe. Model 05103V offers calibrated 0-5 VDC outputs, Model 05103L provides a calibrated 4-20 mA current signal for each channel.
|RMY-05103L||Wind Monitor 4-20 mA Outputs|
|RMY-05103V||Wind Monitor 0-5 VDC Outputs|
